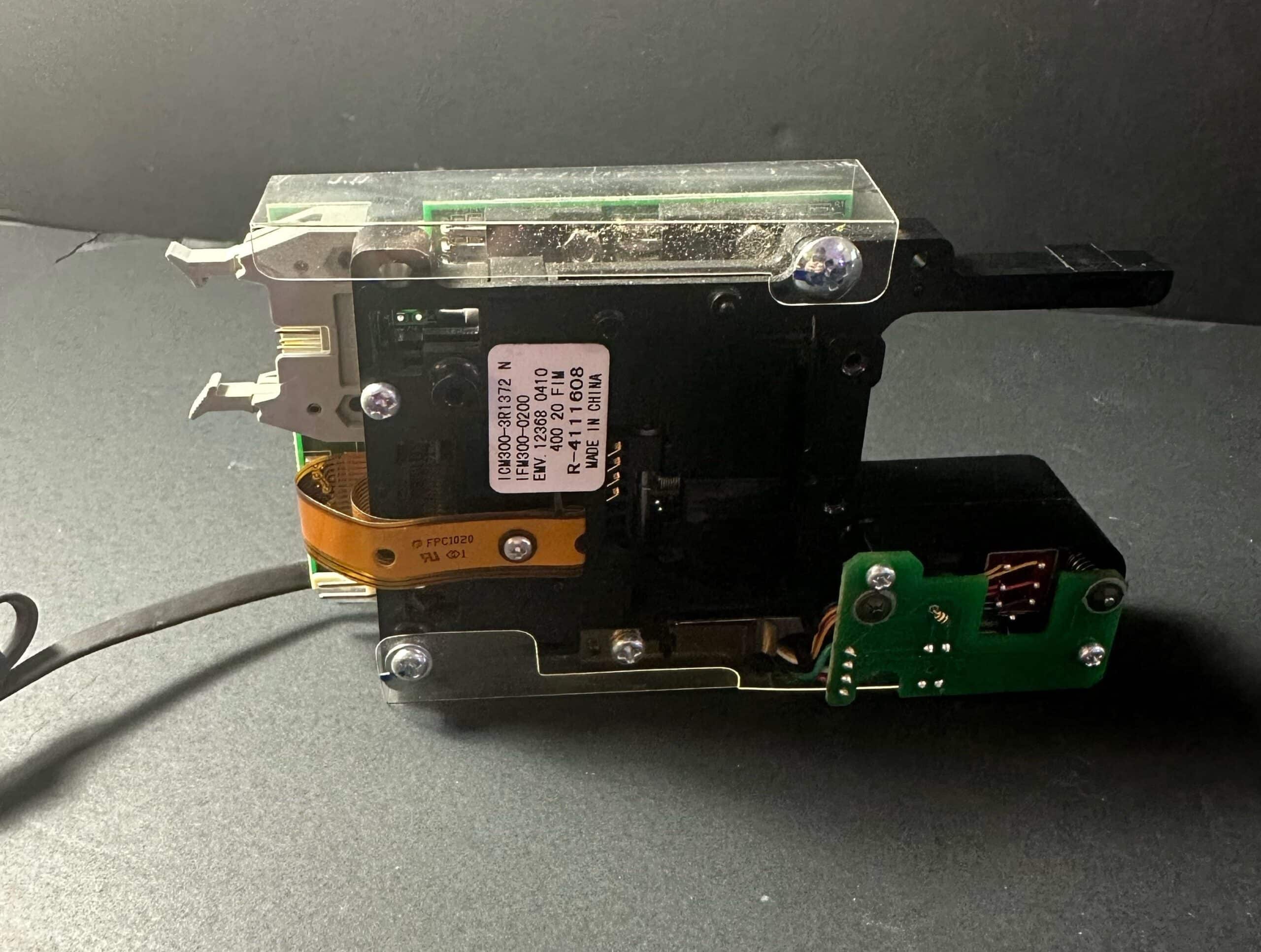

Hyosung ATM EMV Card Reader (Refurbished)

Description

Part Numbers: 7030000095, 7430001823, 7030000137, 7030000094
Condition: Refurbished (Professionally Cleaned & Tested)
Compatibility: Hyosung Halo 2, 2700 (Later Models), Halo (Later Models), X-Force (2800)

Technical Overview

The emv card reader atm module is the primary customer interface for transaction initiation and security validation. This specific unit is a “Dip” style reader designed to handle both legacy magnetic stripe cards and modern EMV (Europay, Mastercard, and Visa) smart chip cards.

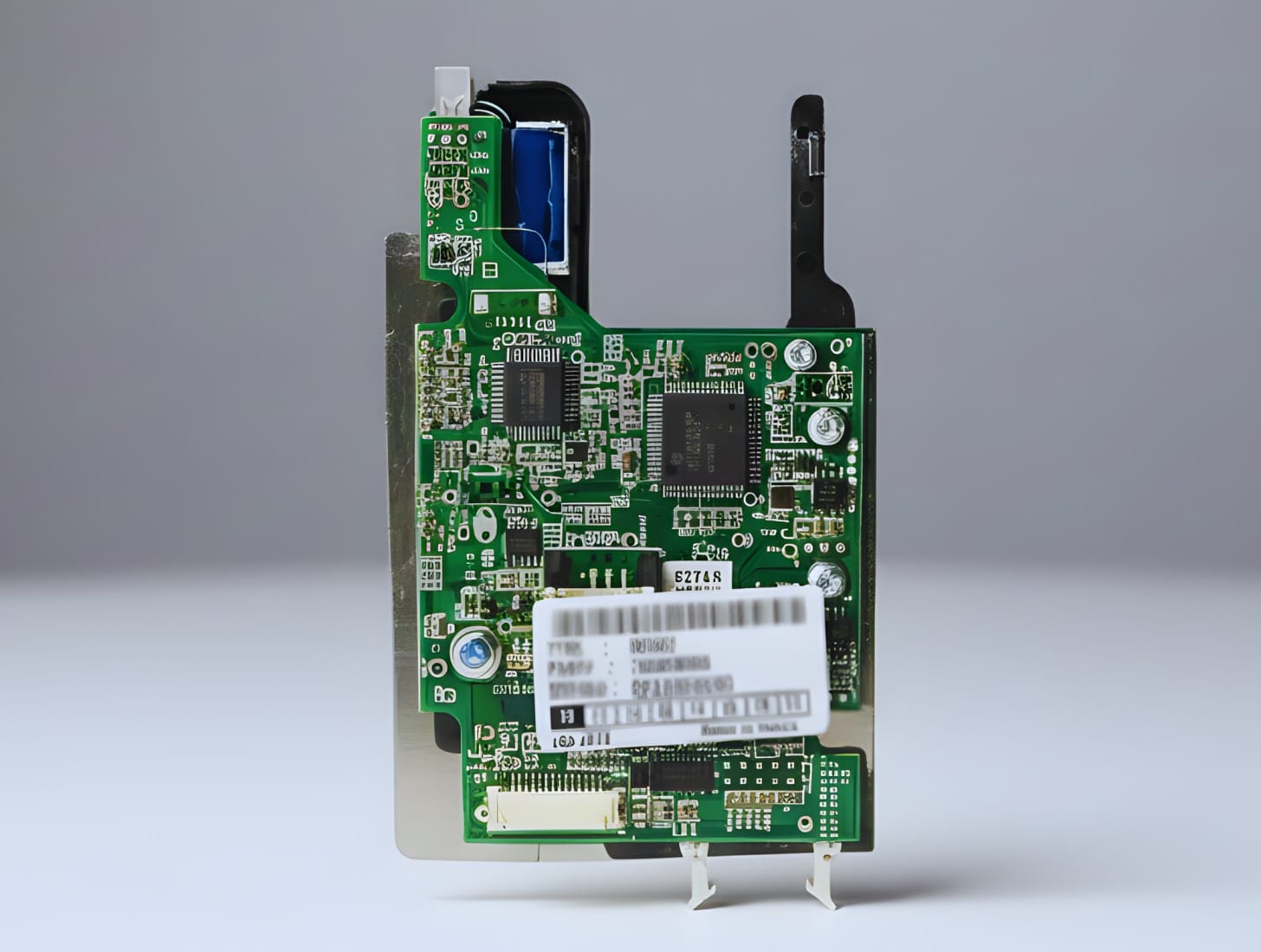

Unlike older swipe-style readers, this unit clamps the card during the read cycle, allowing the integrated contact block to interface directly with the card’s microprocessor. This communication is essential for generating the dynamic cryptograms required by modern banking networks to authorize transactions. The assembly includes the read heads, the chip contact mechanism, the bezel logic board, and the structural housing.

Operational Criticality and Performance

A functioning atm emv card reader is mandatory for compliance with global liability shift standards.

• Dual-Read Technology: This unit simultaneously reads Track 1, 2, and 3 magnetic data while energizing the smart chip (ISO 7816 standard). This ensures valid transactions even if a card’s chip is damaged and the issuer authorizes a fallback to magstripe.
• Security & Encryption: The reader acts as the gatekeeper against fraud. It is the first point of defense against skimming attempts. A properly functioning reader ensures that chip data is transmitted without error, preventing “fallback” fraud where criminals force an ATM to use the less secure magnetic stripe.

Refurbishment & Testing Standards

This unit is sold as Refurbished. In a technical context, this indicates a rigorous restoration process:

• Head Cleaning: The magnetic heads have been professionally cleaned to remove oxide buildup and card debris, restoring high-fidelity signal amplitude.
• Contact Block Inspection: The landing contacts for the EMV chip are inspected for bent pins or corrosion, ensuring reliable connection with customer cards.
• Diagnostic Verification: The unit has been bench-tested using Hyosung diagnostic software to confirm successful read cycles for both magnetic stripes and smart chips.

Common Failure Symptoms

Technicians should consider replacing the reader if the ATM exhibits:

• Chip Read Errors: Persistent “Chip Card Not Readable” or “Please Use Magstripe” errors on known good cards.
• Latching Failures: The mechanism fails to detect the card insertion or does not trigger the software to begin the transaction.
• Intermittent Data Loss: High rates of transaction reversals due to communication timeouts between the reader and the mainboard.

Compatibility & Identification

Before you buy atm emv replacements, it is crucial to verify the generation of your machine. This specific reader assembly is compatible with the following Nautilus Hyosung retail models:

• Halo II (Halo 2)
• Halo (Later Gen Models)
• 2700 Shell (Later Gen Models)
• X-Force / 2800

Note: Please cross-reference your existing unit with Part Numbers 7030000095, 7430001823, 7030000137, or 7030000094 to ensure fitment.

Installation Considerations

When installing this emv card reader atm component:

1. Power Down: Always power off the ATM at the main switch before disconnecting the reader to prevent voltage spikes on the USB or serial bus.
2. ESD Precautions: The logic board on the reader is sensitive to static. Use a grounding strap when handling the exposed circuitry.
3. Bezel Alignment: Ensure the reader sits flush against the fascia bezel. Misalignment can cause card entry friction, leading to customer frustration or stuck cards.
4. Cabling: Inspect the interface cable for pinch points. A damaged cable is often misdiagnosed as a faulty reader.

For operators looking to buy emv atm parts that offer a balance of cost-efficiency and reliability, this refurbished unit provides an OEM-standard solution for maintaining transaction uptime.
